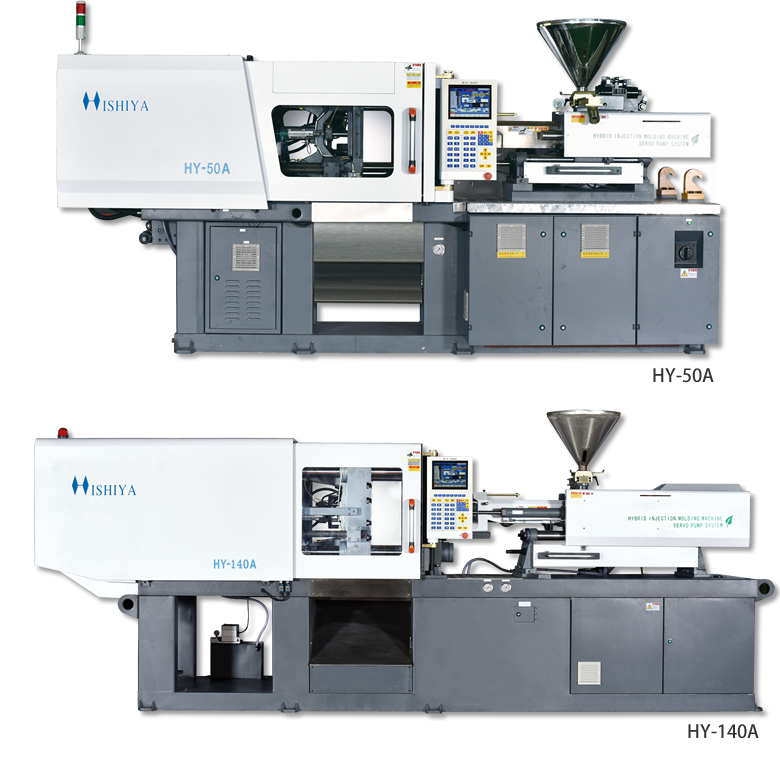

Horizontal Injection Molding Machine (Hybrid)

HY series

HY-50A / HY-100A / HY-140A / HY-180A / HY-280/ HY-380
The HISHIYA hybrid machine which combines the benefit of hydraulic system and electric system is launched for the next generation.
VNT-100R/HS

Horizontal Injection Molding Machine (Hybrid) HY series / Product Introduction

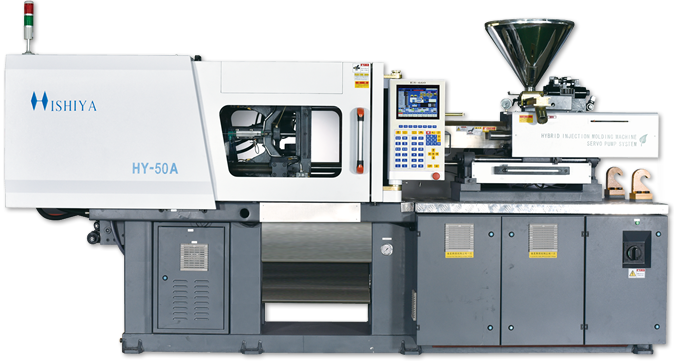

HY-50A

HY-50A
FEATURE
Are you troubled with the high pressure pack?
By using the hybrid machine, high pressure pack for a long time which would not have been achieved by the electric machine can be executed.With a good combination of electric and hydrulic, HY machine leaves the operation feeling "unique to" hydraulic as it is.
In addition, it has a decomposition performance and response like an electric machine.
Machine dimensions（L×W×H）
3.66m×0.99m×1.6m

The following info. can be downloaded by PDF.

Specifications

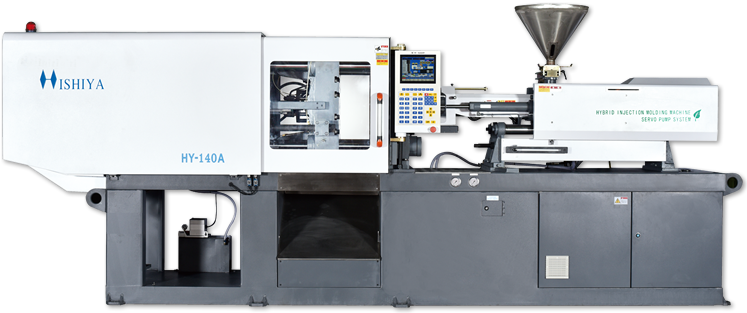

HY-140A

HY-140A
FEATURE
Are you troubled with the thick molding?
By using the hybrid machine, high pressure pack for a long time which would not have been achieved by the electric machine can be executed.
With a good combination of electric and hydrulic, HY machine leaves the operation feeling "unique to" hydraulic as it is.
In addition, it has a decomposition performance and response like an electric machine.
Machine dimensions（L×W×H）
4.92m×1.14m×2.08m

The following info. can be downloaded by PDF.

Specifications

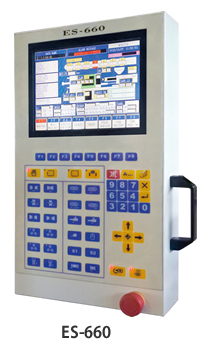

CONTROLLER (ES-660)

ES-660 Color LCD Controller

ES660
  • ・10.4 INCH DISPLAY
  • ・CURSOR MOVEMENT SYSTEM
  • ・TOTALLING 18 PAGES
  • ・MEMORY OF 100 MOLDS IS FEASIBLE
  • ・SWITCH TO ENGLISH OR CHINESE VERSION IS FEATURED

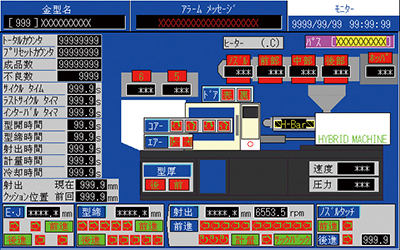

①MONITOR

MONITOR

You can see the operating condition by molding machine in real time on the monitor screen. The shot datas of 100 molds can be recorded in another screen.

②INJECTION/CHARGING

INJECTION/CHARGIN

Not only 3 gradation of mold clamp plus low pressure, but also 5 gradation of speed and pressure control brings smoother clamping.

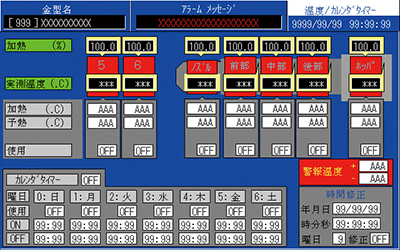

③TEMPERATURE/CALENDAR TIMER

TEMPERATURE/CALENDAR TIMER

Weekly calendar timer is equipped. By adapting PID control and SSR circuit, we promise extremely precise control.

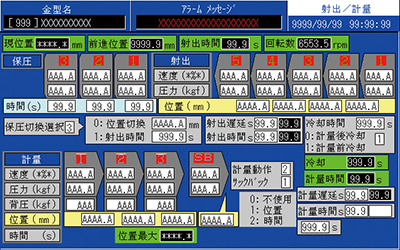

④SHOT DATA

SHOT DATA

5 gradation of injection speed control 3 gradatiion of hold pressure control plus charging speed and back prssure of 3 gradation are controlled. ( 3 gradation of back pressure is available as an option.) High molding precision is attained.

Please feel free to contact us with any questions regarding HY series of horizontal hybrid machine.

Contact details for inquiries : 8:30 am to 17:30 pm
(except weekends and holidays).
TEL: +81-6-6781-8834
